BS4449 Steel Reinforcement Rebar

The differences between the, B and C designations are complex and related to structural tolerances. For steel mesh products, B500A grade steel is usually used, and for steel bars, B500B grade steel is used. B500C steel is rarely required, and it is always worthwhile for structural engineers to check whether B500B grade steel can be used instead of B500C, because B500C usually has a significant cost overhead.

Classification :

Steel Rebar

+8613075358901

kiki@hw-steel.com

E-mail

BS4449 Steel Reinforcement Rebar Description

BS4449 is yet another deformed steel bar standard. It is also differentiated as per European standards. When it comes to manufacturing, the steel bars falling in this standard are also hot rolled, which means that they are also used for general purposes, i.e. in common construction projects. These deformed bars are also available between 12 mm to 30 mm diameter size. And the common lengths that they are available in are 9 m and 12 m. Though, it might vary highly.

BS 4449:97 British Rebar Specifications
Rated Diameter	Nominal Cross Section Area	Weight		EN To The Ribs (mm)				Longitudinal Ribs (mm)				Pitch / Step mm		Ribs Tip Distance mm
Rated Diameter	Nominal Cross Section Area	Kg / m	Tolerance %	Height		Width		Height		Width		Pitch / Step mm		Ribs Tip Distance mm
mm	m㎡	Kg / m	Tolerance %	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
6	28.3	0.222	± 9	0.3	0.6	0.48	0.72	0.3	0.84	0.48	1.2	3,.0	4.8	1.5	2.3
8	50.3	0.395	± 6.5	0.4	0.8	0.64	0.96	0.4	0.84	0.64	1.6	4.0	6.4	2.0	3.1
10	78.5	0.616	± 6.5	0.5	1.0	0.8	1.2	0.5	0.84	0.8	2.0	5.0	8.0	2.5	3.9
12	113.1	0.888	± 4.5	0.6	1.2	0.96	1.44	0.6	0.84	0.96	2.4	6.0	9.6	3.0	4.7
16	201.1	1.579		0.8	1.6	1.28	1.92	0.8	0.84	1.28	3.2	8.0	12.8	4.0	6.2
20	314.2	2.466		1.0	2.0	1.6	2.4	1.0	0.84	1.6	4.0	10.0	16.0	5.0	7.8
25	490.9	3.854		1.25	2.5	2.0	3.0	1.25	0.84	2.0	5.0	12.5	20.0	6.2	9.8
32	804.2	6.313		1.60	3.2	2.56	3.84	1.60	0.84	2.56	6.4	16.0	25.6	8.0	12.5
40	1256.6	9.864		2.0	4.0	3.2	4.8	2.0	0.84	3.2	8.0	20.0	32.0	10.0	15.7
50	1963.5	15.413		2.5	5.0	4.0	6.0	2.5	0.84	4.0	10.0	25.0	40.0	12.5	19.6

BS 4449:97 Steel Rebar Mechanical Properties
Quality	Akma N / mm2<	Akma / Pull Rate N/mm2	Elongation Elasticity	Total max. % AGT
Quality	min.	min.	min.	min.
GR 250	250	Akma x 1.15	22	–
GR 460 A	460	Akma x 1.05	12	2.5
GR 460 B	460	Akma x 1.08	14	5

BS 4449:97 Steel Rebar Chemical Properties

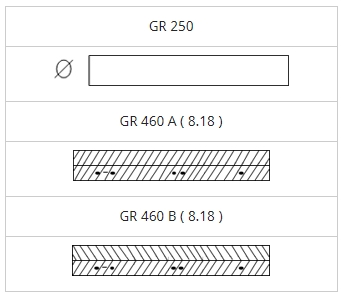

Element	GR 250 % max.		GR 460 A / B % max.		Ribs and Marking Method
Element	Casting	Product	Casting	Product
C	0.25	0.27	0.25	0.27
P	0.060	0.065	0.050	0.055
S	0.060	0.065	0.050	0.055
N	0.012	0.013	0.012	0.013
CE	0.42	0.45	0.51	0.54
Mn Cr+Mo+V Ni+Cu
CE = C + ————- + ——————- + —————–
6 5 15

Scope of Application

Widely used in houses, bridges, roads, especially railways and other civil engineering.

美国	日本	德国		英国		法国	意大利	西班牙	瑞士	中国
AISI/SAE	JIS	W‐nr.	DIN	BS	EN	AFNOR	UNI	UNE	SS	GB
A570.36	STKM 12A	1.0038	RSt.37‐2	4360	‐	E 24‐2	‐	‐	1311	15
-	STKM 12C	-	-	40 C	-	Ne	-	-	-	-
1015	‐	1.0401	C15	080M15	‐	CC12	C15, C16	F.111	1350	15
1020	‐	1.0402	C22	050A20	2C	CC20	C20, C21	F.112	1450	20
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	F.2111	1912	Y15
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	11SMn28	1912	Y15
12L13	SUM22L	1.0718	9SMnPb28	‐	‐	S250Pb	CF9SMnPb28	11SMnPb28	1914	‐
‐	‐	1.0722	10SPb20	‐	‐	10PbF2	CF10Pb20	10SPb20	‐	‐
1215	‐	1.0736	9SMn36	240M07	1B	S300	CF9SMn36	12SMn35	‐	Y13
12L14	‐	1.0737	9SMnPb36	‐	‐	S300PB	CF9SMnPb36	12SMnP35	1926	‐
1015	S15C	1.1141	Ck15	080M15	32C	XC12	C16	C15K	1370	15
1025	S25C	1.1158	Ck25	‐	‐	‐	‐	‐	‐	25
A572-60	‐	1.890	StE380	4360 55	‐	‐	FeE390KG	‐	2145	‐
1035	‐	1.0501	C35	060A35	‐	CC35	C35	F.113	1550	35
1045	‐	1.0503	C45	080M46	‐	CC45	C45	F.114	1650	45
1140	‐	1.0726	35S20	212M36	8M	35MF4	‐	F210G	1957	‐
1039	‐	1.1157	40Mn4	150M36	15	35M5	‐	‐	‐	40Mn
1335	SMn438(H)	1.1167	36Mn5	‐	‐	40M5	‐	36Mn5	2120	35Mn2
1330	SCMn1	1.1170	28Mn6	150M28	14A	20M5	C28Mn	‐	‐	30Mn
1035	S35C	1.1183	Cf35	060A35	‐	XC38TS	C36	‐	1572	35Mn
1045	S45C	1.1191	Ck45	080M46	‐	XC42	C45	C45K	1672	Ck45
1050	S50C	1.1213	Cf53	060A52	‐	XC48TS	C53	‐	1674	50
1055	‐	1.0535	C55	070M55	9	‐	C55	‐	1655	55
1060	‐	1.0601	C60	080A62	43D	CC55	C60	‐	‐	60
1055	S55C	1.1203	Ck55	070M55	‐	XC55	C50	C55K	‐	55
1060	S58C	1.1221	Ck60	080A62	43D	XC60	C60	‐	1678	60Mn
1095	‐	1.1274	Ck101	060A96	‐	XC100	‐	F.5117	1870	‐
W1	SK3	1.1545	C105W1	BW1A	‐	Y105	C36KU	F.5118	1880	‐
W210	SUP4	1.1545	C105W1	BW2	‐	Y120	C120KU	F.515	2900	‐

Factory Appearance

We are a manufacturer and exporter specialized in the research, production, retail, wholesale, packaging, after-sales of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

Packing and shipping

Our geographical location has convenient transportation, developed logistics, and professional logistics and shipping. We provide customers with convenient, cost-reducing, and value-added services; we have won the recognition and trust of many customers.

Application Areas

Products are widely used in precision instruments, aviation, ships, automobiles, medical, construction, Bridges, boilers, parts processing and other industries.

Customer Visit

The products distributed by our company are guaranteed by the manufacturer, and have a complete pre-sale, in-sale and after-sales service system. Our company has a strong standing stock of thousands of tons, sufficient supply and complete specifications. It has formed an annual inventory turnover of more than 10,000 tons and more than 900 specifications.

HONOR
