Stainless Steel C Groove Steel

The stainless steel channel is a long strip steel whose cross-sectional shape is a groove shape. Same as I-beam, stainless steel channel steel is also divided into two kinds of ordinary channel steel and light channel steel. The main purpose of hot-rolled stainless steel ordinary channel steel is: ordinary channel steel is mainly used for building structure, vehicle manufacturing and other industrial structures, and is often used in conjunction with I-beam. Hot-rolled stainless steel light channel steel (YB164-63) Hot-rolled light channel steel is a kind of steel with wide legs and thin walls, which has better economic effect than ordinary hot-rolled channel steel. Main uses: construction and steel frame structure, etc.

Classification :

Channel Steel

E-mail

Product Description

Hot-rolled stainless steel light channel steel (YB164-63) Hot-rolled light channel steel is a kind of steel with wide legs and thin walls, which has better economic effect than ordinary hot-rolled channel steel. Main uses: construction and steel frame structure, etc.

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	50374.5-40010414.5,75403.87-152766.49, 14060710-200758.511.5
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

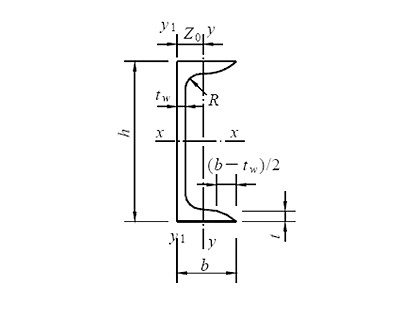

符号：同普通工字钢但 Wy 为对应翼缘肢尖											长度：型号 5～8，长 5～12m；型号 10～18，长 5～19m；型号 20～20，长 6～19m。
型号		尺寸（mm）					截面面积 (cm2)	理论重量 (kg/m)	x-x 轴			y-y 轴			y-y1 轴	Z0
		h	b	tw	t	R			Ix	Wx	ix	Iy	Wy	Iy	Iy1	Z0
		h	b	tw	t	R			(cm4)	(cm3)	(cm)	(cm4)	(cm3)	(cm)	(cm4)	(cm)
5		50	37	4.5	7	7	6.92	5.44	26	10.4	1.94	8.3	3.5	1.1	20.9	1.35
6.3		63	40	4.8	7.5	7.5	8.45	6.63	51	16.3	2.46	11.9	4.6	1.19	28.3	1.39
8		80	43	5	8	8	10.24	8.04	101	25.3	3.14	16.6	5.8	1.27	37.4	1.42
10		100	48	5.3	8.5	8.5	12.74	10	198	39.7	3.94	25.6	7.8	1.42	54.9	1.52
12.6		126	53	5.5	9	9	15.69	12.31	389	61.7	4.98	38	10.3	1.56	77.8	1.59
14	a	140	58	6	9.5	9.5	18.51	14.53	564	80.5	5.52	53.2	13	1.7	107.2	1.71
14	b	140	60	8	9.5	9.5	21.31	16.73	609	87.1	5.35	61.2	14.1	1.69	120.6	1.67
16	a	160	63	6.5	10	10	21.95	17.23	866	108.3	6.28	73.4	16.3	1.83	144.1	1.79
16	b	160	65	8.5	10	10	25.15	19.75	935	116.8	6.1	83.4	17.6	1.82	160.8	1.75
18	a	180	68	7	10.5	10.5	25.69	20.17	1273	141.4	7.04	98.6	20	1.96	189.7	1.88
18	b	180	70	9	10.5	10.5	29.29	22.99	1370	152.2	6.84	111	21.5	1.95	210.1	1.84
20	a	200	73	7	11	11	28.83	22.63	1780	178	7.86	128	24.2	2.11	244	2.01
20	b	200	75	9	11	11	32.83	25.77	1914	191.4	7.64	143.6	25.9	2.09	268.4	1.95
22	a	220	77	7	11.5	11.5	31.84	24.99	2394	217.6	8.67	157.8	28.2	2.23	298.2	2.1
22	b	220	79	9	11.5	11.5	36.24	28.45	2571	233.8	8.42	176.5	30.1	2.21	326.3	2.03
25	a	250	78	7	12	12	34.91	27.4	3359	268.7	9.81	175.9	30.7	2.24	324.8	2.07
	b		80	9	12	12	39.91	31.33	3619	289.6	9.52	196.4	32.7	2.22	355.1	1.99
	c		82	11	12	12	44.91	35.25	3880	310.4	9.3	215.9	34.6	2.19	388.6	1.96
28	a	280	82	7.5	12.5	12.5	40.02	31.42	4753	339.5	10.9	217.9	35.7	2.33	393.3	2.09
	b		84	9.5	12.5	12.5	45.62	35.81	5118	365.6	10.59	241.5	37.9	2.3	428.5	2.02
	c		86	11.5	12.5	12.5	51.22	40.21	5484	391.7	10.35	264.1	40	2.27	467.3	1.99
32	a	320	88	8	14	14	48.5	38.07	7511	469.4	12.44	304.7	46.4	2.51	547.5	2.24
	b		90	10	14	14	54.9	43.1	8057	503.5	12.11	335.6	49.1	2.47	592.9	2.16
	c		92	12	14	14	61.3	48.12	8603	537.7	11.85	365	51.6	2.44	642.7	2.13
36	a	360	96	9	16	16	60.89	47.8	11874	659.7	13.96	455	63.6	2.73	818.5	2.44
	b		98	11	16	16	68.09	53.45	12652	702.9	13.63	496.7	66.9	2.7	880.5	2.37
	c		100	13	16	16	75.29	59.1	13429	746.1	13.36	536.6	70	2.67	948	2.34
40	a	400	100	10.5	18	18	75.04	58.91	17578	878.9	15.3	592	78.8	2.81	1057.9	2.49
	b		102	12.5	18	18	83.04	65.19	18644	932.2	14.98	640.6	82.6	2.78	1135.8	2.44
	c		104	14.5	18	18	91.04	71.47	19711	985.6	14.71	687.8	86.2	2.75	1220.3	2.42

Factory Appearance

We are a manufacturer and exporter specialized in the research, production, retail, wholesale, packaging, after-sales of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

Packing and shipping

Our geographical location has convenient transportation, developed logistics, and professional logistics and shipping. We provide customers with convenient, cost-reducing, and value-added services; we have won the recognition and trust of many customers.

Application Areas

Products are widely used in precision instruments, aviation, ships, automobiles, medical, construction, Bridges, boilers, parts processing and other industries.

Customer Visit

The products distributed by our company are guaranteed by the manufacturer, and have a complete pre-sale, in-sale and after-sales service system. Our company has a strong standing stock of thousands of tons, sufficient supply and complete specifications. It has formed an annual inventory turnover of more than 10,000 tons and more than 900 specifications.
